Pride Mobility

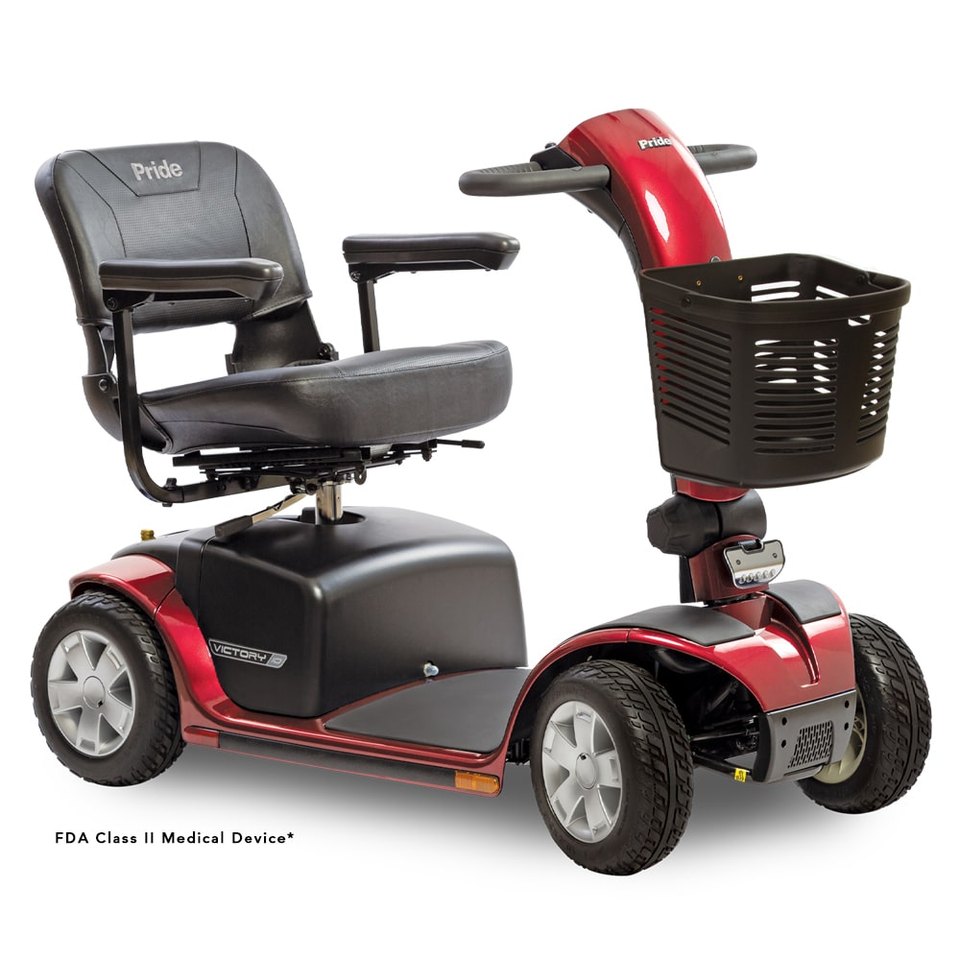

Victory 10 4 Wheel
SKU: SC710 - 40AH
Rental inquiry
Ask about rental options
Call our team to discuss rental options for this product.
Overview
Product description
• Scooter Drive Range: 16.00 miles
• Max Speed: 5.30 mph
• Disassembles/Folds: Yes
• Overall Width: 22.25″
• Overall Length: 45.25″
• Product Weight: 158 lbs.
• Heaviest Piece: 54 lbs.
• Weight Capacity: 400 lbs
• Suspension: No
• Scooter Seat Width: 18″; 20″
• Seat Depth: 17
• Max Seat to Ground Height: 22″
• Max Seat to Deck Height: 19″
• Lowest Seat to Ground Height: 20.5″
• Height Adjustable Seat: Yes
• High-Back Seat: Yes
• Multiple Seating Options: Yes
• Delta Tiller: Yes
• Turning Radius: 42″
• Ground Clearance: 2.20″
• Max Incline Rating: 8 °
• Adjustable Tiller: Yes
• Armrest Options: Flip-Back; Width Adjustable
• Flip-Back Armrests: Yes
• Wheel Type: Three Wheeled
• Front Wheel Size: 10″
• Rear Wheel Size: 10″
• Air-Filled (Pneumatic) Tires: No
• Battery Type: U-1 or 40AH
• Batteries Included: Yes
• Battery Charger Type: Off Board
• Larger Battery Option: Yes
• Motor Size: 24-Volt DC motor
• Drive Type: Rear-Wheel Drive
• One-Hand Operation: Yes
• Braking System: Electronic, Regenerative, and Electromechanical
• Basket Included: Yes
• Headlight: Yes
• Extended Base: No
• Weight Without Batteries: 133.00 lbs.
• Battery Pack Weight: 48.00 lbs.
• Charging Port Location: Tiller
• Battery Warranty: 6 Months
• Quick-Ship: Yes
Measurements and options
Specifications
Specs
- Scooter Drive Range
- 16.00 miles
- Max Speed
- 5.30 mph
- Disassembles/Folds
- Yes
- Overall Width
- 22.25″
- Overall Length
- 45.25″
- Product Weight
- 158 lbs.
- Heaviest Piece
- 54 lbs.
- Weight Capacity
- 400 lbs
- Suspension
- No
- Scooter Seat Width
- 18″; 20″
- Seat Depth
- 17
- Max Seat to Ground Height
- 22″
- Max Seat to Deck Height
- 19″
- Lowest Seat to Ground Height
- 20.5″
- Height Adjustable Seat
- Yes
- High-Back Seat
- Yes
- Multiple Seating Options
- Yes
- Delta Tiller
- Yes
- Turning Radius
- 42″
- Ground Clearance
- 2.20″
- Max Incline Rating
- 8 °
- Adjustable Tiller
- Yes
- Armrest Options
- Flip-Back; Width Adjustable
- Flip-Back Armrests
- Yes
- Wheel Type
- Three Wheeled
- Front Wheel Size
- 10″
- Rear Wheel Size
- 10″
- Air-Filled (Pneumatic) Tires
- No
- Battery Type
- U-1 or 40AH
- Batteries Included
- Yes
- Battery Charger Type
- Off Board
- Larger Battery Option
- Yes
- Motor Size
- 24-Volt DC motor
- Drive Type
- Rear-Wheel Drive
- One-Hand Operation
- Yes
- Braking System
- Electronic, Regenerative, and Electromechanical
- Basket Included
- Yes
- Headlight
- Yes
- Extended Base
- No
- Weight Without Batteries
- 133.00 lbs.
- Battery Pack Weight
- 48.00 lbs.
- Charging Port Location
- Tiller
- Battery Warranty
- 6 Months
- Quick-Ship
- Yes
Victory 10.2 Specs
- Model
- Victory 10.2 3-Wheel
- HCPCS Code*
- K0801 Group 1 Heavy Duty
- Weight Capacity
- 400 lbs.
- Front Tire
- 3.5″x10″ solid
- Rear Tires
- 3.5″x10″ solid
- Maximum Speed1
- Up to 5.2 mph
- Ground Clearance3
- 2.4” at transaxle; 2.1” at anti-tip; 3.0” at side deck
- Turning Radius3
- 42″
- Length/Width3
- 45″/22.25″
- Seating
- Foldable, black vinyl 18”x17”
- Seat-to-Ground
- 22-24″
- Weight (w/Batteries)3,6
- U1 178.25 lbs. | 40Ah 194.25 lbs.
- Seat-to-Deck
- 15.25” – 18.25”
- Battery Weight5
- 24.5 lbs. each
- Battery Requirements3,4
- (U-1) 24.5 lbs. each; (40 AH) 32.5 lbs. each
- Range Per Charge1,2
- Up to 11 Miles (U-1); Up to 13 Miles (40AH)
- Battery Charger
- 3.5-amp, off-board (U-1); 5-amp, off-board (40 AH)
- Weight of Heaviest Piece3
- 56.5 lbs. (front section)
- Warranty
- Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain
Coverage information
Warranty
Battery Warranty: 6 Months
Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain
