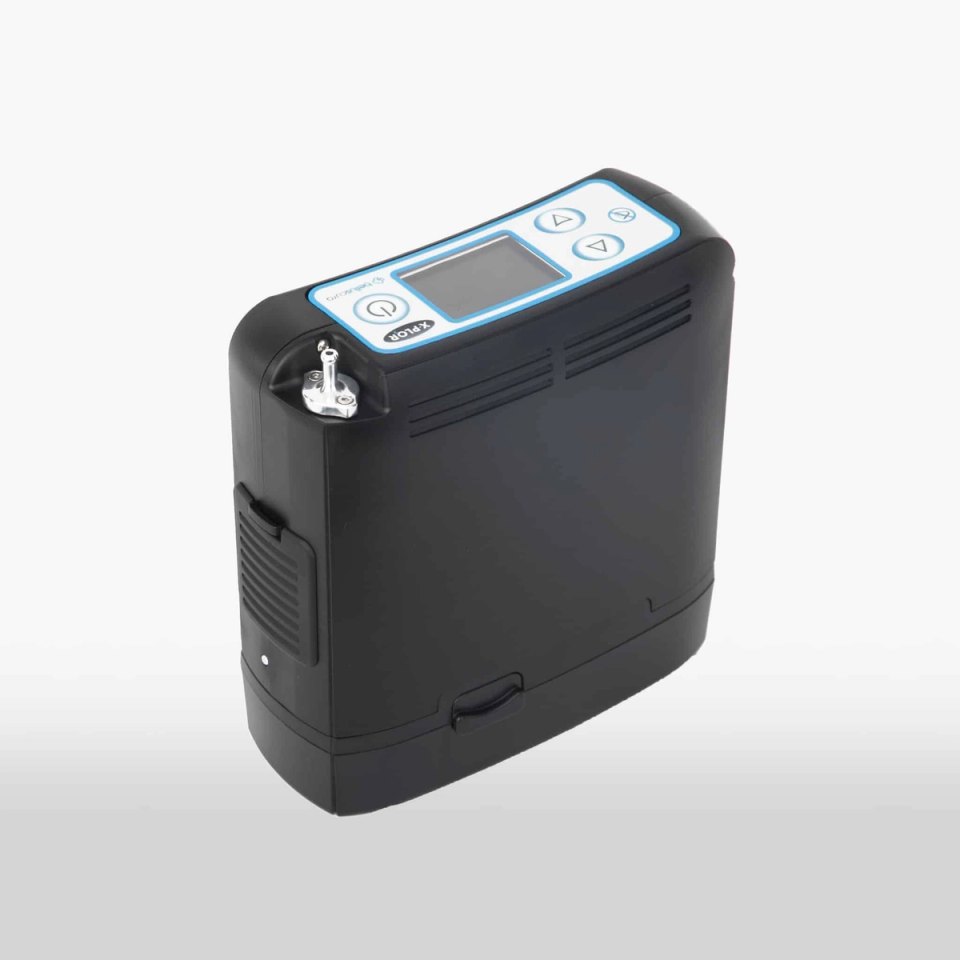

Belluscura X-PLOR® Pulse Flow Portable Oxygen Concentrator

Specifications

Dimensions: With 8-cell Battery

L / W / H : 7.3 in. (18.5 cm.) / 2.9 in. (7.4 cm.) / 7.6 in. (19.3 cm.)

Weight of Unit

Without battery: 3.25 lbs; with 8-cell battery: 3.75 lbs

Warm-Up Time

Less than 2 minutes

Flow Settings

1-4 Pulse Settings

Breath Rate

15-40 breaths per minute

Inhalation Trigger Pressure

<-0.2 cm H2O

Maximum Outlet Pressure

10 psig (41.37 kPa)

Sound

<39 dB(A) at Level 2

Power AC Power Supply DC Power Supply

AC Input: 100 to 240 VAC; 50 to 60 Hz Auto-Sensing 1.0A DC Input: 15 V

Battery Duration

Up to 4.5 hours for an 8-cell battery

Battery Charging Time

Up to 6 hours for an 8- cell battery

Environmental Ranges Intended for Use:

Temperature: 41 to 104°F (5 to 40°C) Humidity: 5% to 85%, non-condensing Altitude: 0 to 10,000 feet (0 to 3048 meters) Atmospheric pressure: 700 to 1060 mba

Oxygen Purity

82% to 92% at all flow settings and over the rated ranges for ambient temperature, humidity, and atmospheric pressure, after the initial warm-up period (Less than two minutes after power on).

Transportation

Keep dry, handle with care
